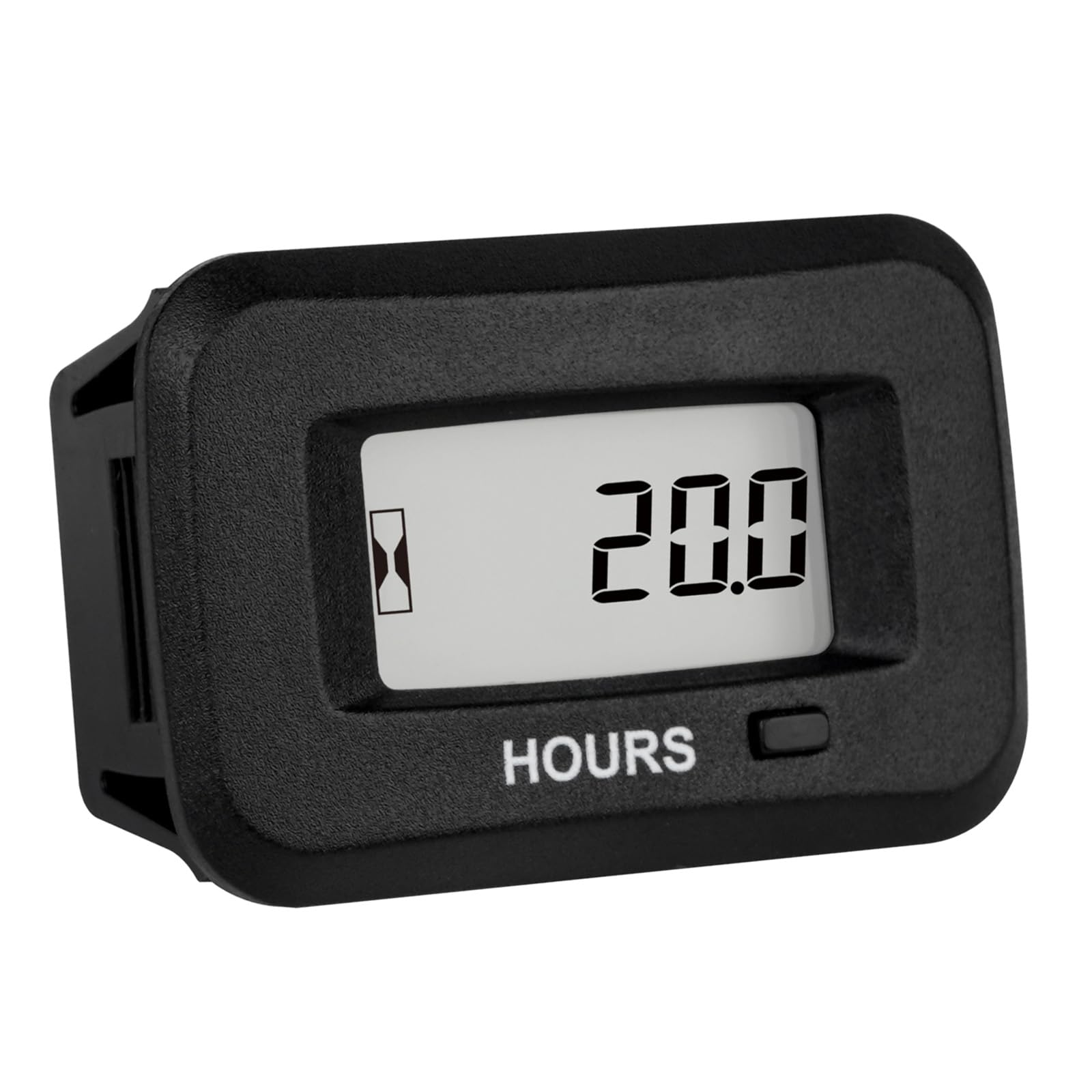

For more than 10 years, Runleader has focused on product development and manufacturing in the fields of hour meter, battery indicator, multi-function meter, controller,service for the garden machinery industry, outdoor power vehicle equipment, transportation vehicles, such as: generators, pumps,chainsaws,outboards,lawn mowers,compressors and others,provide well-known European and American customers with quality products and services. RL-HM038AD Digital LCD hour meter is an useful device to keep record the total hours for dc powered equipment maintenance tracking.It is made in 100% epoxy resin craft therefore have favorable water resistance which can keep good working condition upon 10 meter underwater up to IP68. It can be works on AC and DC powered machine based on voltage range:AC/DC 5V to 277V, such as lawn mower,generator,forklift,motorhome,golf cart,etc. Runleader RL-HM038AD Digital LCD Hour Meter,AC/DC 5V to 277V,Auto Data Storage,Waterproof Design. TOT hours: It record the total running hours of equipment when power is on; TOT initial hours: You can set a desired hours for following tracking or new meter replacement within 1 hour before machine run. 2 JOB timers: It also have 2 channels to record the hours tracking during single working period, its are resettable.TOT maximum value:99,999 hours.TOT hours range: 0 to 99,999 hours. Runleader has established a complete laboratory for testing and improving the product's quality. High Pressure Washer Testing Display with PC transparent board can keep it away from the damp or moist It also prevent the strong shock when it is cleaning Drop Testing Favorable anti-vibration performance can suffer strong vibrations when the equipments is working High & Low Temperature Testing It can works well in temperature environments temperature: -40 °C - +70 °C Salt Spray Testing It can keep good working condition under 5% strength salt spray solution about 16 hours. Anti-vibration Testing It can keep the housing and LCD display window in good condition upon vibration amplitude 1.52mm after 6 hours testing period. Anti-interference Testing It keep the good working condition upon static interference test. It also pass another considerate test for each functions sections and attached accessories. Runleader HM038AD Digital Hour Meter Runleader HM055AD Digital Hour Meter Runleader HM038AGH Digital Hour Meter Runleader HM056AD Digital Hour Meter Runleader HM057AD Digital Hour Meter Runleader HM057ADH Digital Hour Meter Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 417 3.9 out of 5 stars 122 4.4 out of 5 stars 828 4.1 out of 5 stars 95 4.4 out of 5 stars 418 4.6 out of 5 stars 728 Price $17.99$17.99 $17.14$17.14 $17.59$17.59 $16.99$16.99 $17.99$17.99 $17.95$17.95 Applicable Working Voltage AC/DC 5V to 277V AC/DC 5V to 277V AC/DC 5V to 277V AC/DC 5V to 277V AC/DC 5V to 277V DC 5V to 60V Power Pins Type 2 pins 2 pins 3 pins 2 pins 2 pins 2 pins TOT Range 0 to 99,999 hours 0 to 99,999 hours 0 to 99,999 hours 0 to 99,999 hours 0 to 99,999 hours 0 to 99,999 hours TOT Initial Hours ✓ / / / / / Maintenance Reminder / / 1 group/50 hours / / 1 group/50 hours Partial Hours(JOB) 2 groups / / / / / Battery Types CR2050 360mAh CR2050 360mAh CR2050 360mAh CR2050 360mAh CR2050 360mAh / Mounting Panel Cut-out Size 37.50mm*24.50mm(1.48 inches*0.96 inch) 37.50mm*24.50mm(1.48 inches*0.96 inch) 37.50mm*24.50mm(1.48 inches*0.96 inch) 37.50mm*24.50mm(1.48 inches*0.96 inch) 37.50mm*24.50mm(1.48 inches*0.96 inch) 37.50mm*24.50mm(1.48 inches*0.96 inch) Display Window Size/Product Size 24.50mm*12.5mm（0.96 inches*0.49 inch）/ 45.00mm*27.50mm*35.50mm（1.77 inches*1.08 inches*1.34 inches） 24.50mm*12.5mm（0.96 inches*0.49 inch）/ 45.00mm*27.50mm*35.50mm（1.77 inches*1.08 inches*1.34 inches） 24.50mm*12.5mm（0.96 inches*0.49 inch）/ 45.00mm*27.50mm*35.50mm（1.77 inches*1.08 inches*1.34 inches） 24.50mm*12.5mm（0.96 inches*0.49 inch）/ φ58.40mm*37.10mm（φ 2.31inches*1.45 inches） 24.50mm*12.5mm（0.96 inches*0.49 inch）/ 45.00mm*27.50mm*35.50mm（1.77 inches*1.08 inches*1.34 inches） 24.50mm*12.5mm（0.96 inches*0.49 inch）/ 45.00mm*27.50mm*35.50mm（1.77 inches*1.08 inches*1.34 inches） Waterproof Rate IP68 IP68 IP68 IP68 IP68 IP68

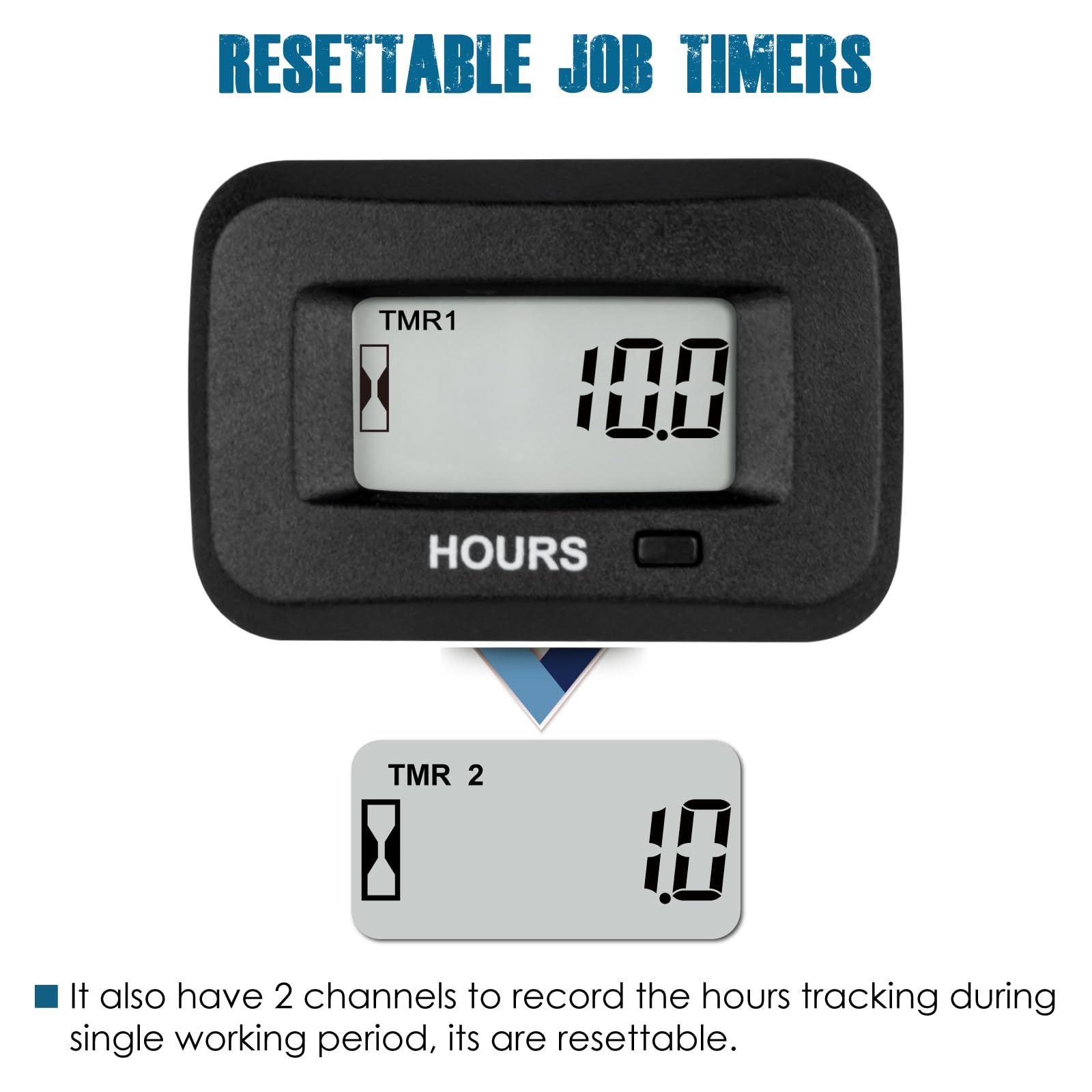

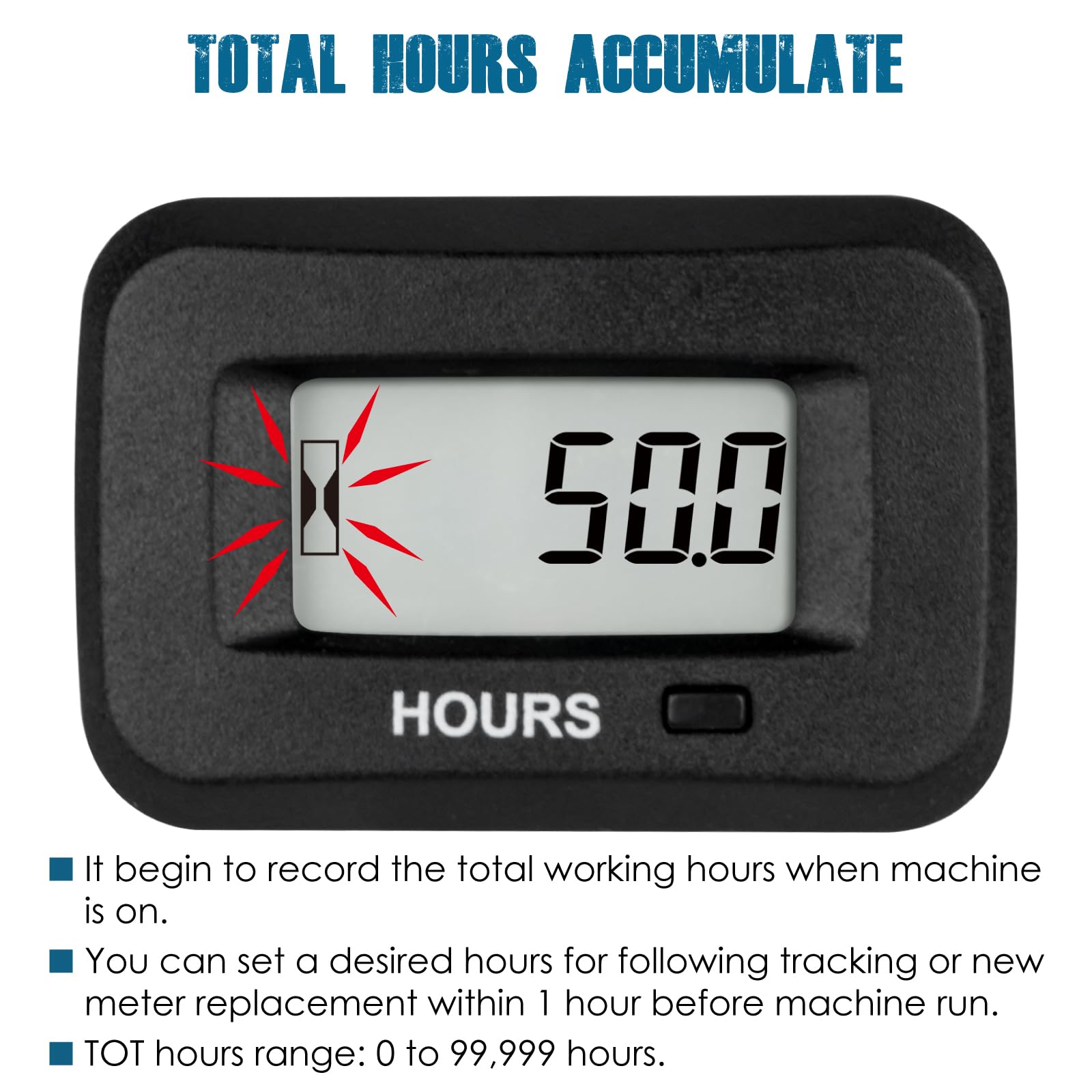

HOUR METER ---- It record the total working hours when machine is on(For some types of riding lawn mower,sit on the seat to enable the pressure switch on, then the hour meter will begin to record),with ability to set the start hours for hours running; 2 resettable hours running during a single working period.Hours range 0 to 99,999 hours;
APPLICABLE WORKING VOLTAGE---- It is worked by external power of wide voltage application AC or DC 5V to 277V ,such as common voltage 12V 24V 36V 48V 72V 90V 110V 120V 220V 230V or another more;

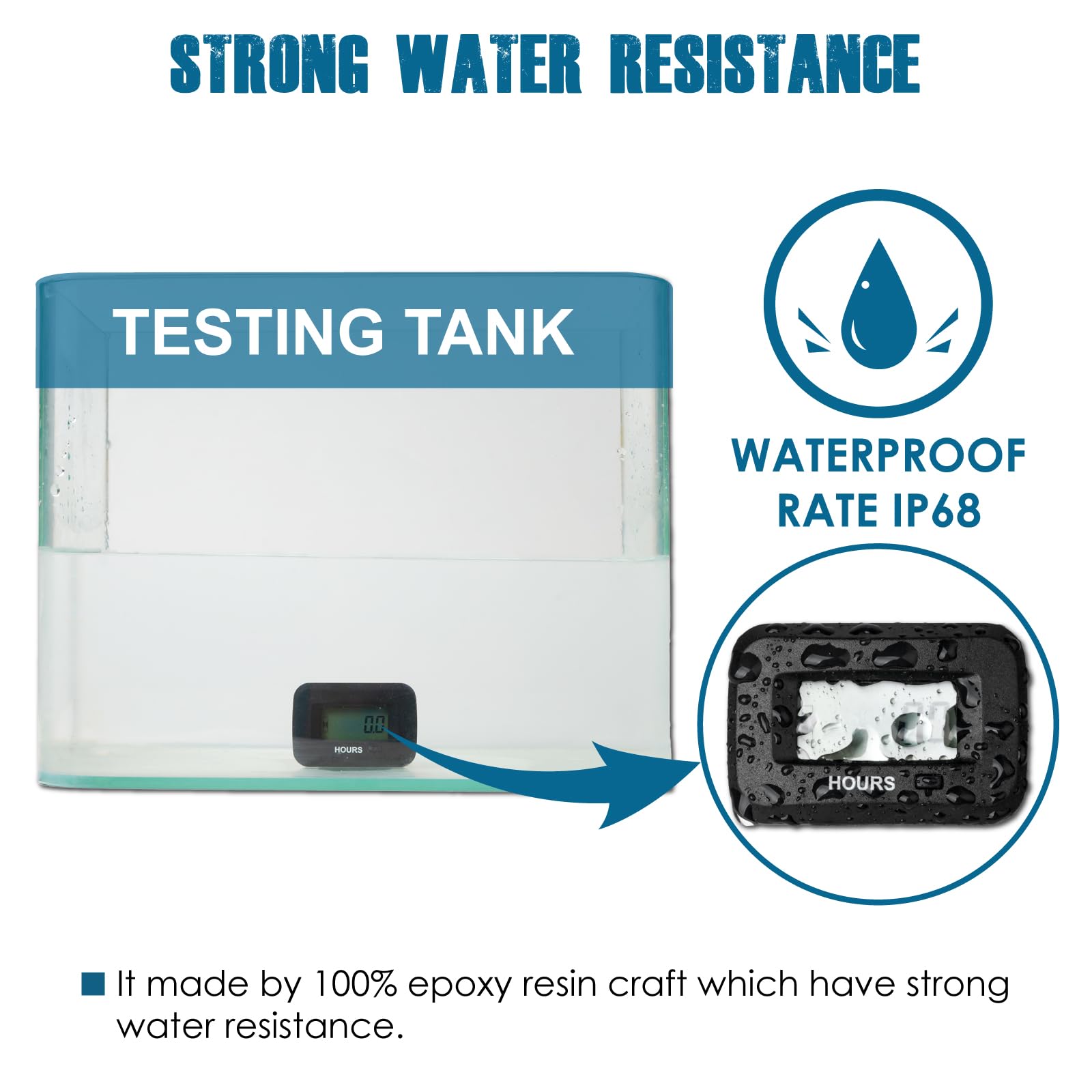

WATER RESISTANCE ---- This hour meter is made by 100% epoxy resin craft, it have strong water resistance and run normally into 10 meters underwater up to standards IP68.

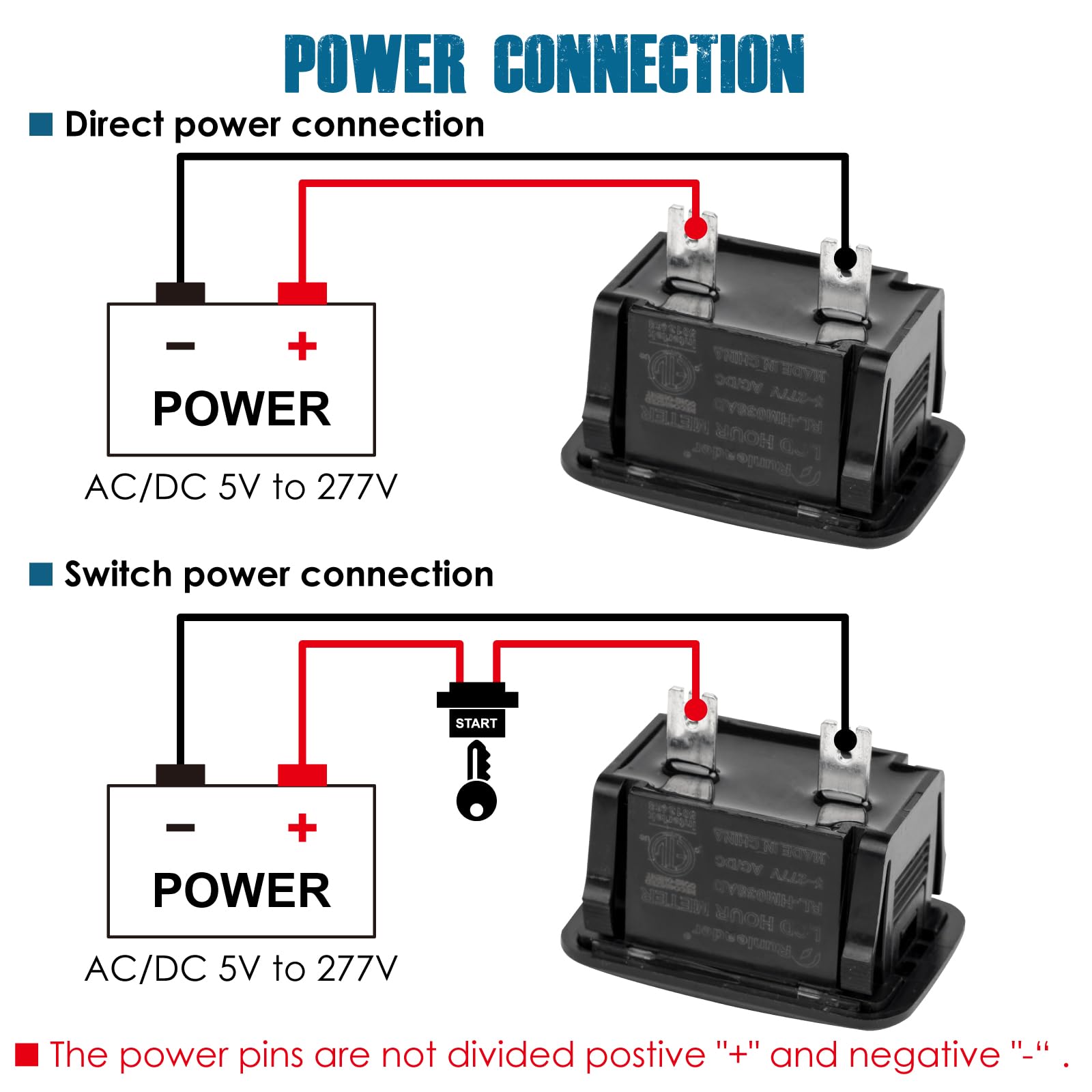

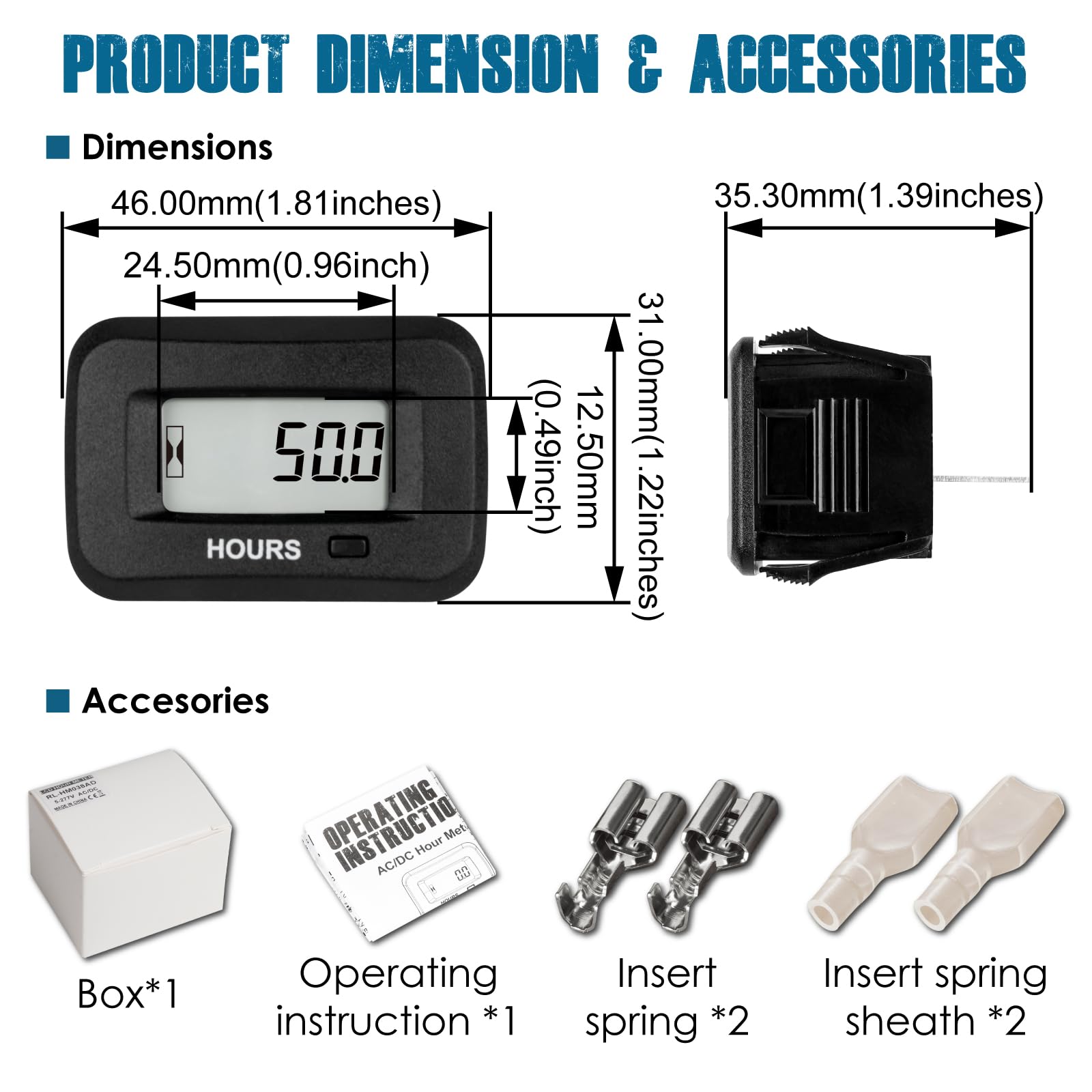

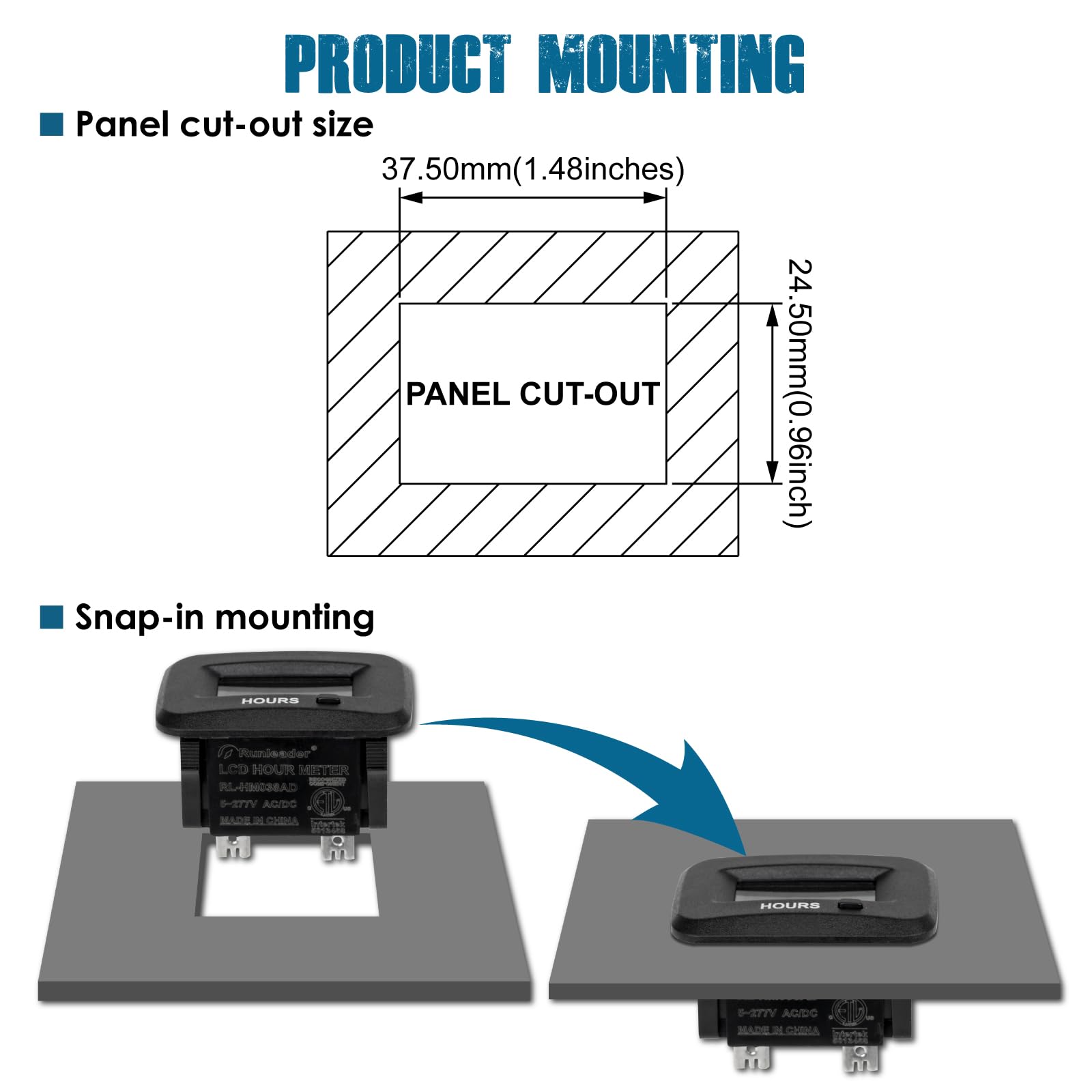

PRODUCT INSTALLATION ---- You can mount it at any proper place by drill-in and snap-in by panel cut-out size 37.50mm*24.50mm(1.48 inches*0.96 inch);There are only 2 connection pins for easy external power connection, its are not divided into negative and positive poles.

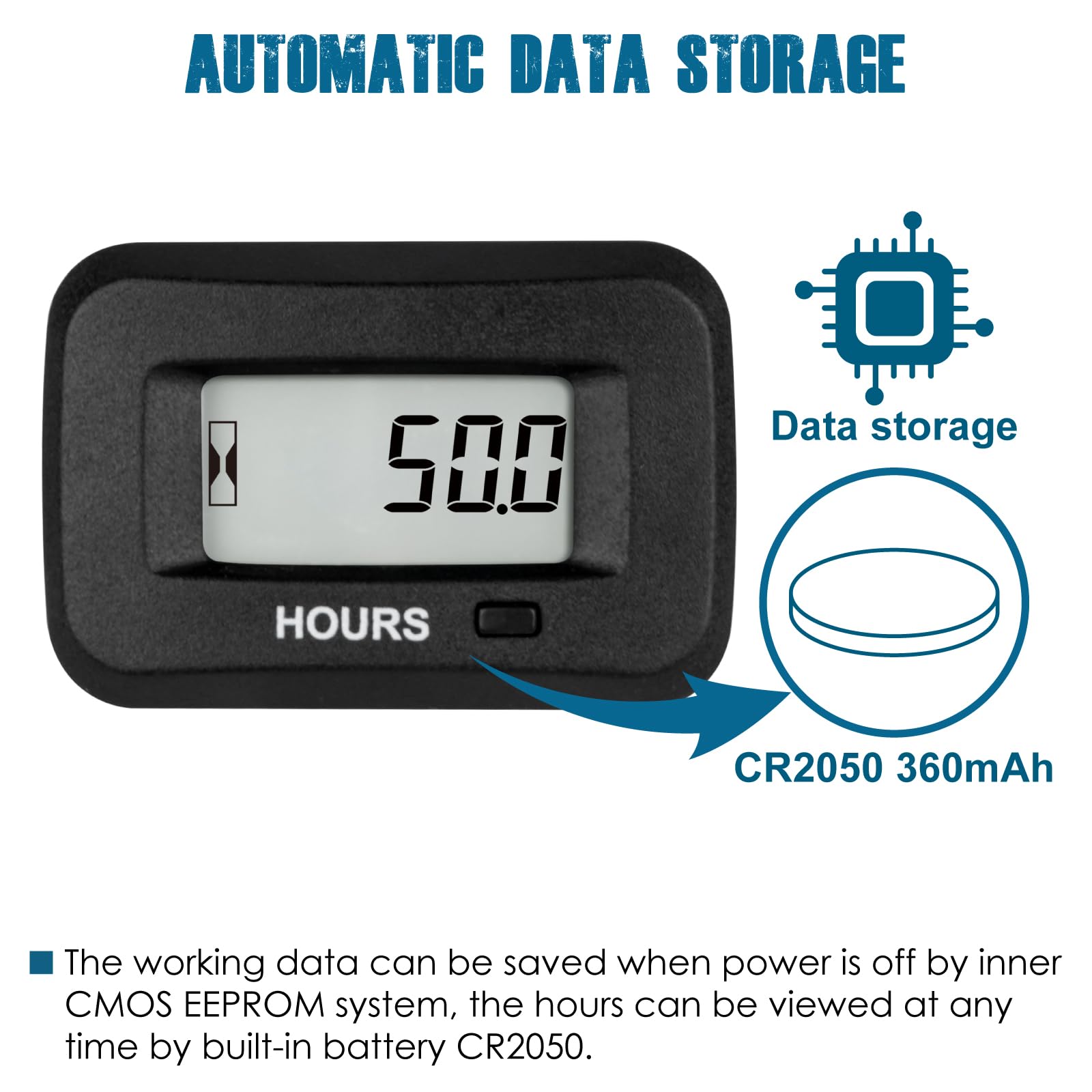

OTHER FEATURES ---- View working data by built-in battery CR2050 360mAh; Reliable after-sales service and technical supports(2 years).
