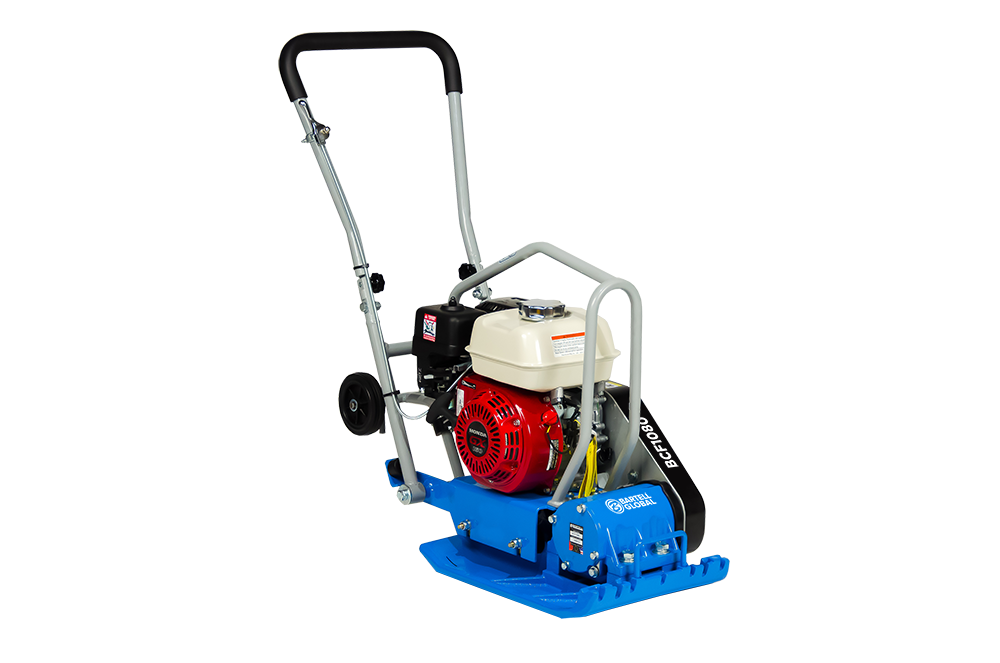

Bartell BCF1080 Forward Plate Compactor - Heavy Duty Construction Compaction Equipment for Driveways, Landscaping & Asphalt Repair

Light, Rugged, and Easy to Maneuver

The Bartell BCF1080 is the most compact forward plate compactor in Bartell鈥檚 lineup鈥攄esigned for light compaction tasks where agility and precision are key. Built with durable components and a user-friendly design, it鈥檚 perfect for smaller job sites, tight areas, or paving projects where control and finesse matter.

Features

• Honda GX160 Engine 鈥?Reliable 4.8hp engine for dependable performance

• Robust Throttle Control 鈥?Handle-mounted for safe and convenient operation

• Anti-Vibration Handle 鈥?Reduces operator fatigue over extended use

• Folding Handle 鈥?Compact for easy transport and storage

• Retractable Wheels 鈥?Built-in mobility for effortless movement on-site

• Integrated Lifting Bale 鈥?Safe and simple loading/unloading

• Straight-Edge Plate 鈥?Allows edge-to-edge compaction with no missed margins

• Sealed Housing 鈥?Protects belt from dirt and debris

• Optional Urethane Mat 鈥?Prevents paver scratching and breakage

Specifications

• Engine: Honda GX160, 4.8hp (3.6kW)

• Compaction Force: 2,381 lbf / 10.5 kN / 1,080 kgf

• Max Travel Speed: 82 ft/min (25 m/min)

• Plate Size: 14" x 22" (35 x 55 cm)

• Dimensions (L x W x H): 28" x 16" x 23" (711 x 406 x 584 mm)

• Weight: 137 lbs (62 kg)
